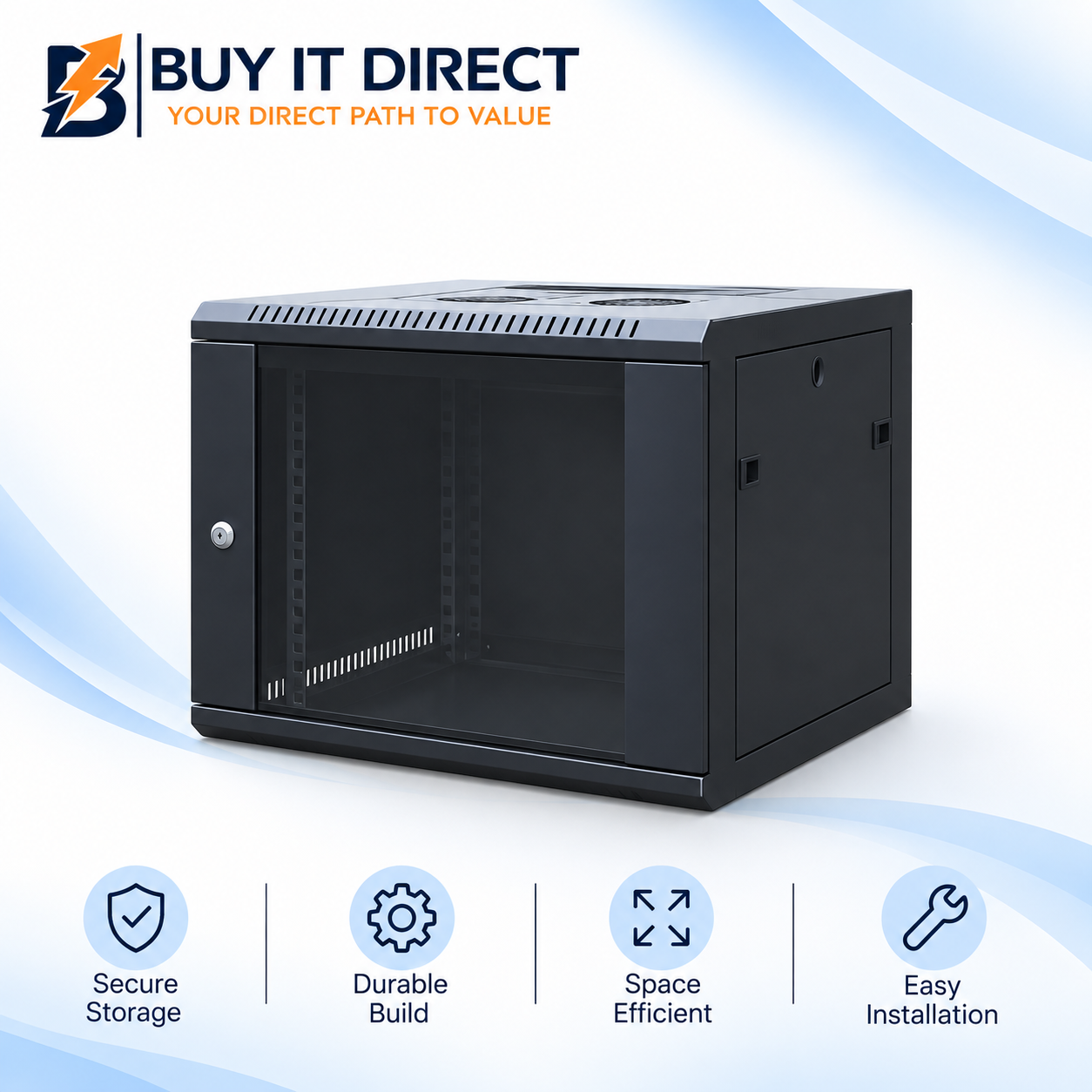

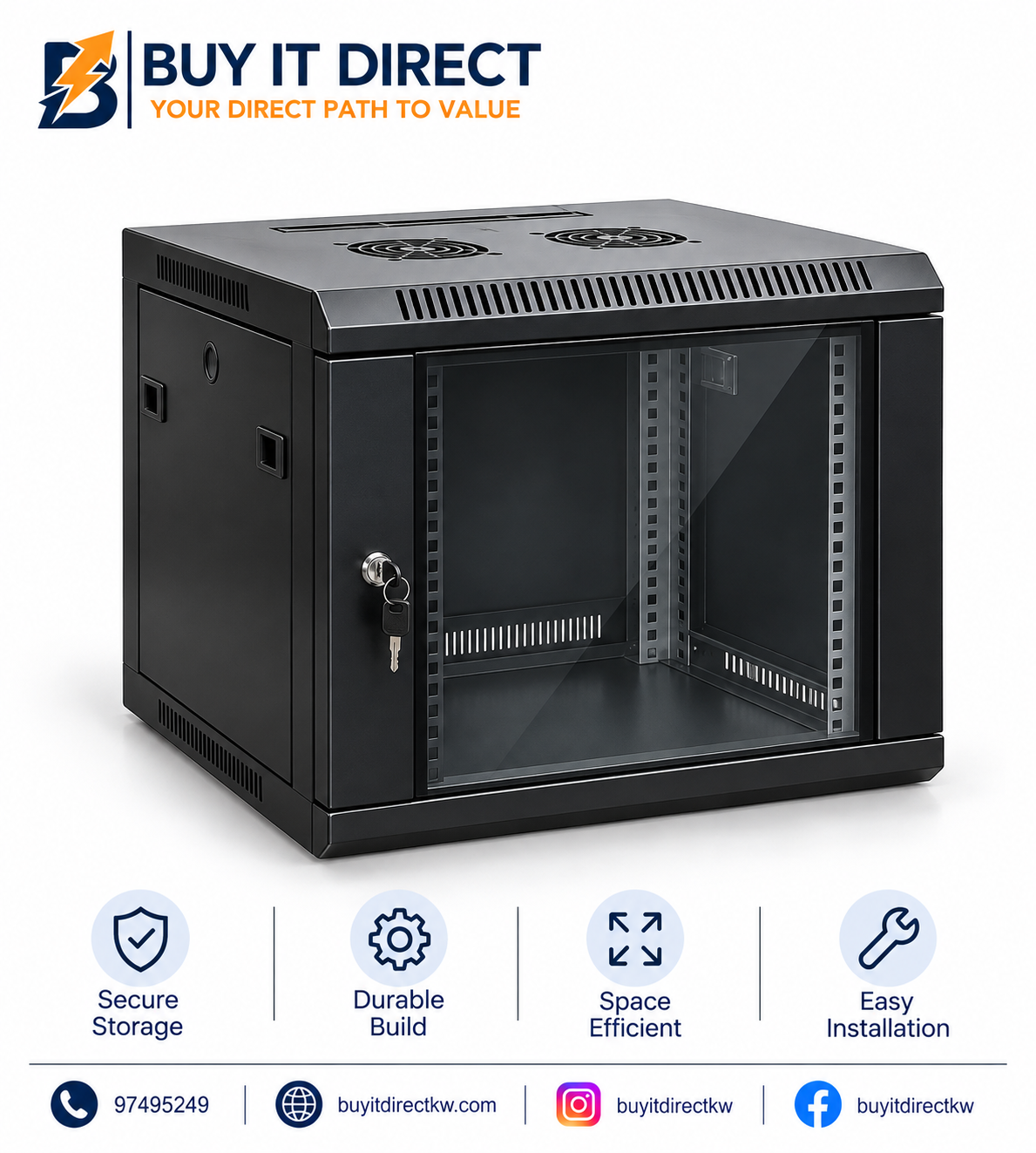

Toten 9U 600×800 Wall Mount Cabinet is a 19-inch rack designed for small and home data networks. It is suitable for mounting switches, routers, firewalls, NVRs and other compatible network equipment. The cabinet features a welded frame, wall-mounted or standing installation, removable side panels, top and bottom cable entry, a glass front door with an opening angle of over 180°, 1-way fan and 6-way PDU. It is made from SPCC cold rolled steel with a powder-coated finish, IP20 protection and a static loading capacity of 60 kg.

TECHNICAL SPECIFICATIONS

Brand: Toten

Rack Capacity: 9U

Size: 600 × 800 mm

Mounting Standard: 19-inch

Installation: Wall Mounted / Standing

Front Door: Glass

Door Opening: Over 180°

Fan: 1 Way

PDU: 6 Way

Lock: Round

Material: SPCC Cold Rolled Steel

Mounting Profile Thickness: 2.0 mm

Mounting Angle Thickness: 1.5 mm

Other Parts Thickness: 1.2 mm

Cable Entry: Top and Bottom

Surface Finish: Powder Coated

Protection: IP20

Static Loading Capacity: 60 kg
