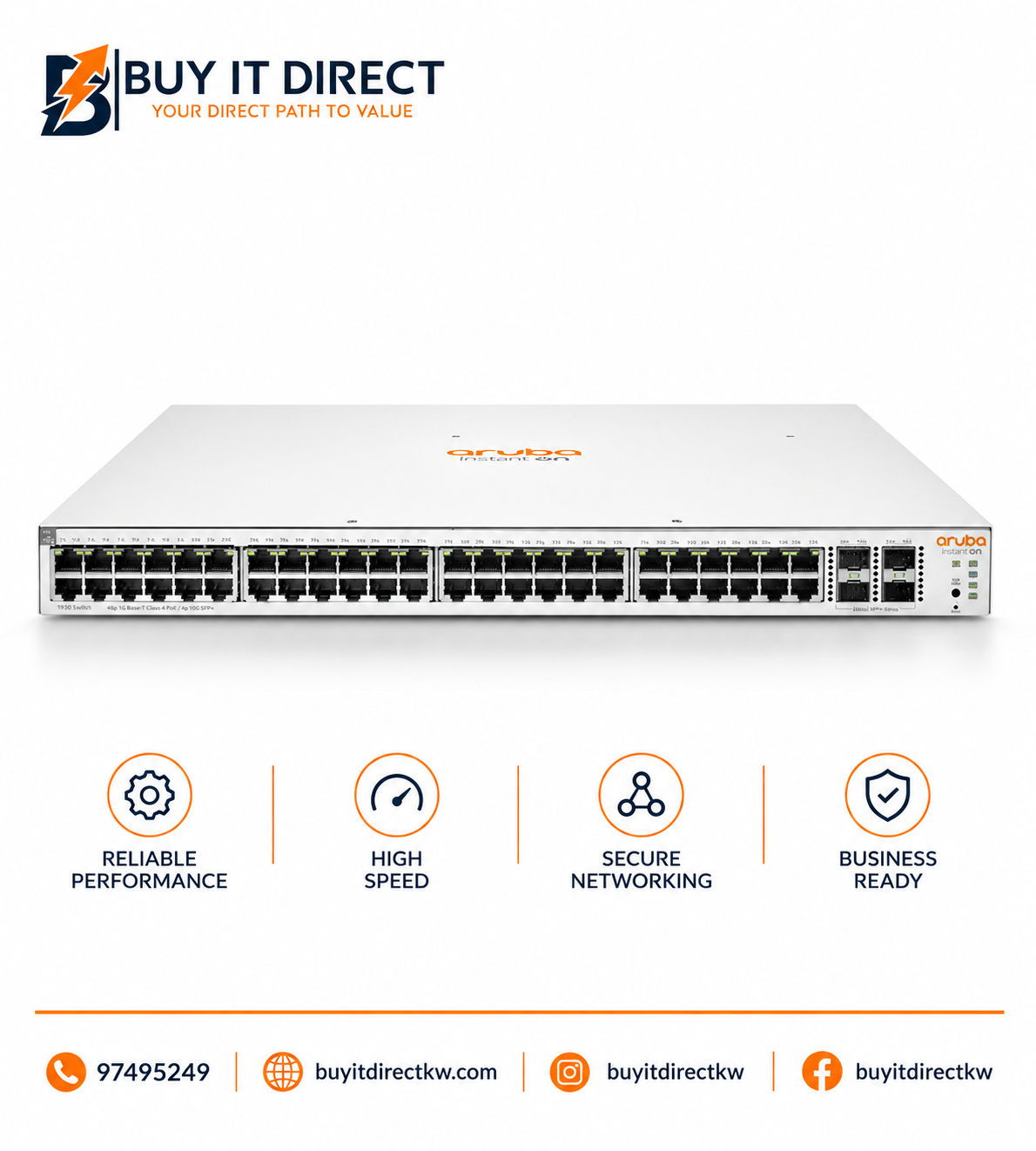

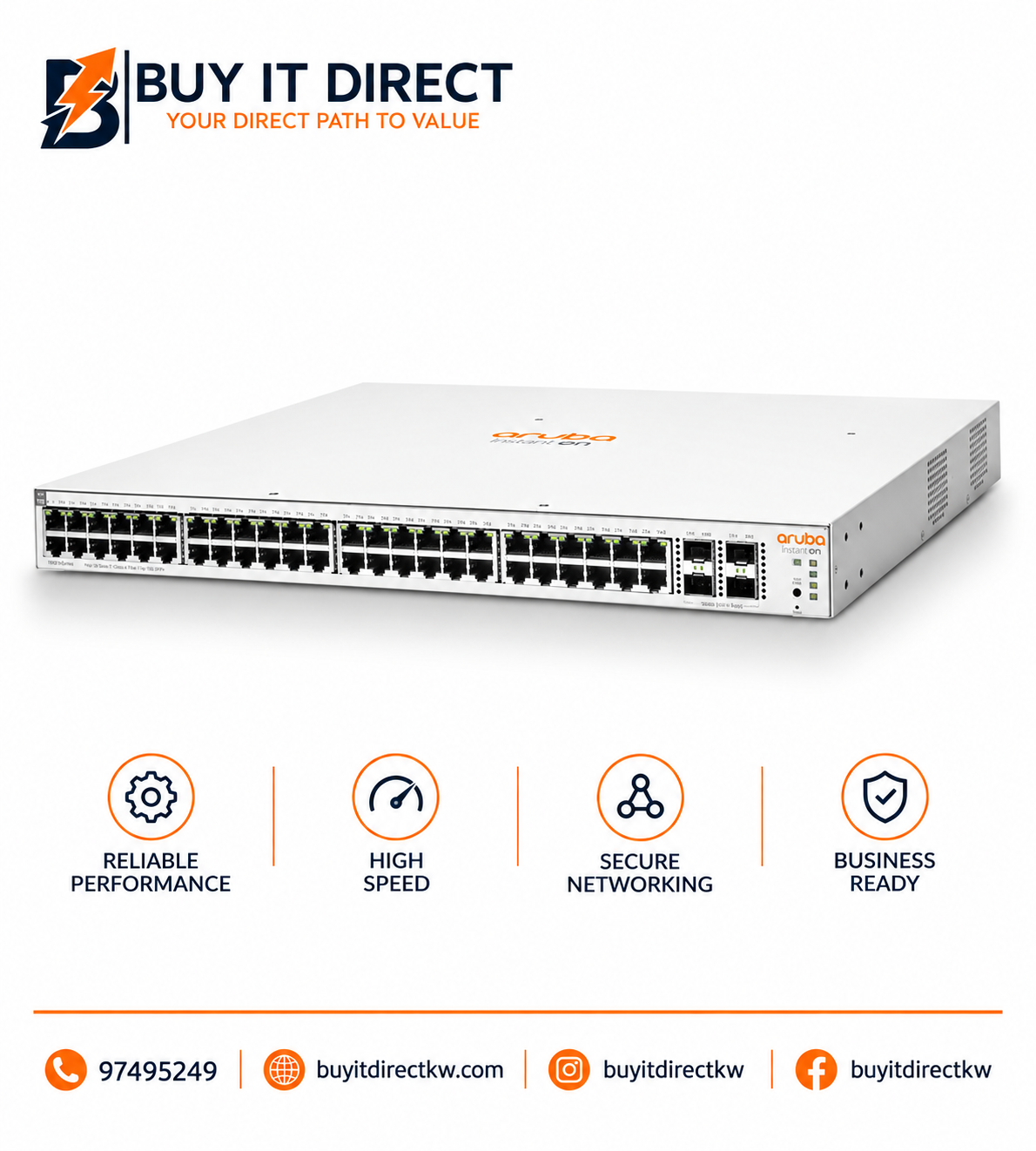

HPE Aruba Instant On 1930 48G Class 4 PoE 4SFP SFP Plus 370W Switch is a smart managed switch designed to provide reliable high speed wired connectivity for small and medium sized businesses. The JL686B features 48 RJ 45 autosensing 10 100 1000 Mbps Class 4 PoE ports and 4 SFP Plus 1 10GbE ports for high bandwidth uplink connectivity. It supports flexible network deployment with cloud based management through HPE Networking Instant On, web browser and SNMP management options.

TECHNICAL SPECIFICATIONS

• Product Type: Smart Managed Gigabit PoE Switch
• Model: Aruba Instant On 1930 48G Class 4 PoE 4SFP SFP Plus 370W
• SKU: JL686B
• RJ 45 Ports: 48 autosensing 10 100 1000 Mbps Class 4 PoE ports
• Uplink Ports: 4 SFP Plus 1 10GbE ports
• Ethernet Standard: IEEE 802.3 10BASE T IEEE 802.3u 100BASE TX and IEEE 802.3ab 1000BASE T
• PoE Standard: IEEE 802.3 Type 10BASE T 100BASE TX and 1000BASE T with Class 4 PoE
• Switching Capacity: 176 Gbps
• Throughput: 130.95 Mpps
• MAC Address Table: 16000 entries
• Routing Table: 32 static entries
• Packet Buffer: 1.5 MB
• Memory: 512 MB SDRAM and 256 MB flash
• Processor: ARM Cortex A9 at 800 MHz
• Dimensions: 44.25 x 32.26 x 4.39 cm
• Form Factor: 1U
• Weight: 4.59 kg
• PoE Power Budget: 370 W
• Management: Instant On Cloud Web Browser and SNMP Manager
• Operating Temperature: 0°C to 40°C
• Mounting: Rack Mount Tabletop Wall Mount and Under Table Mounting
