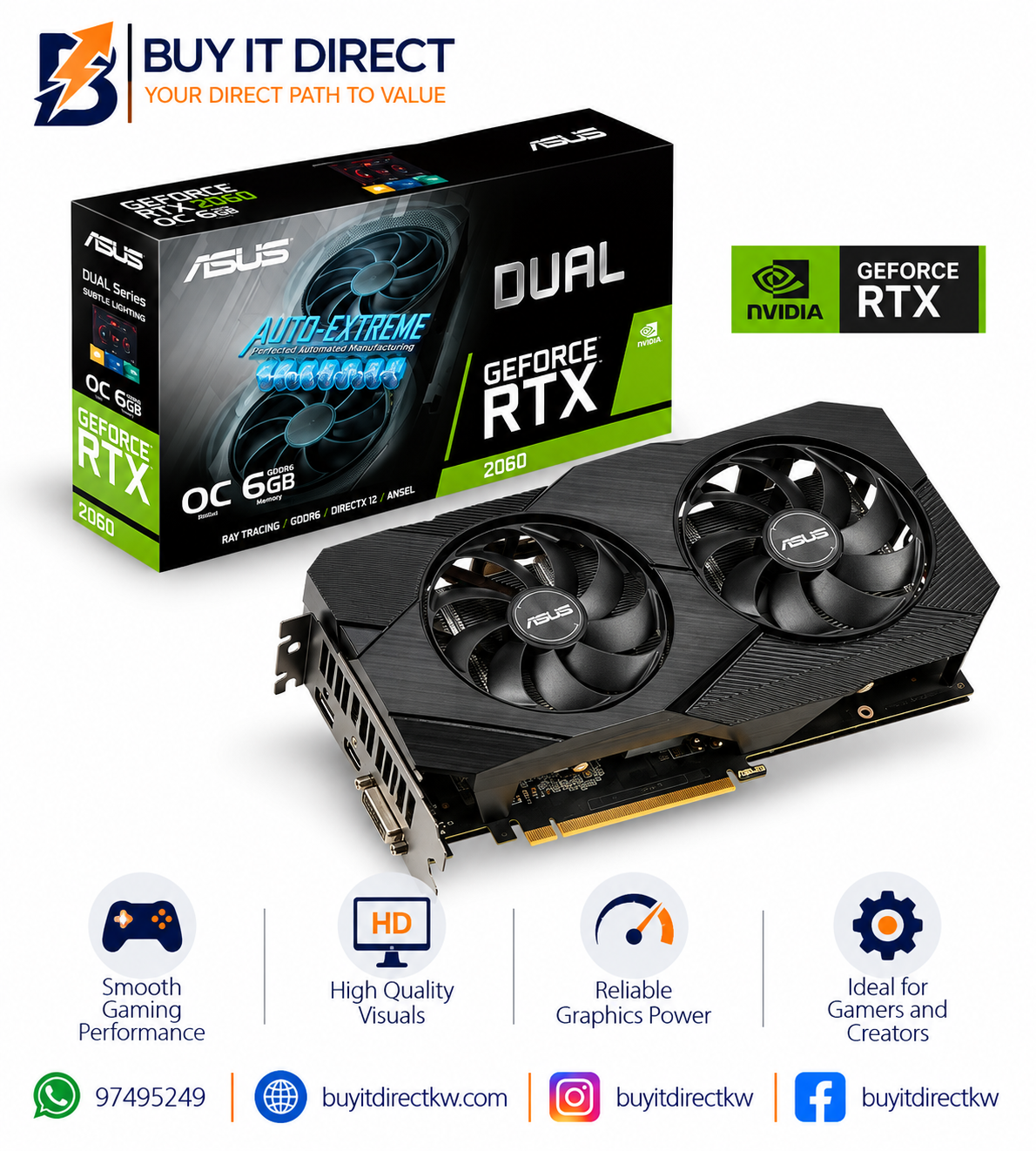

ASUS GeForce RTX 2060 DUAL EVO OC Edition is a graphics card powered by the NVIDIA GeForce RTX 2060 GPU and designed for gaming and graphics intensive applications. It features 6GB of GDDR6 memory with a 192 bit memory interface, 14 Gbps memory speed and an OC Mode boost clock of 1785 MHz. The card uses a PCI Express 3.0 interface and ASUS Axial tech dual fan cooling to help manage temperatures during demanding workloads. It provides 2 x DisplayPort 1.4 and 1 x HDMI 2.0b outputs, supports up to 4 displays and offers a maximum digital resolution of 7680 x 4320. The card also supports NVIDIA technologies including Ray Tracing, DLSS, G SYNC, DirectX 12 and VR Ready functionality.

TECHNICAL SPECIFICATIONS

Graphics Processing Unit: NVIDIA GeForce RTX 2060

CUDA Cores: 1920

Memory: 6GB GDDR6

Memory Interface: 192 bit

Memory Speed: 14 Gbps

OC Mode Boost Clock: 1785 MHz

Gaming Mode Boost Clock: 1755 MHz

Interface: PCI Express 3.0

Video Outputs: 2 x DisplayPort 1.4 and 1 x HDMI 2.0b

Maximum Displays: 4

Maximum Digital Resolution: 7680 x 4320

Cooling System: Dual Fan

Cooling Technology: Axial Tech Fan

Power Consumption: 160W

Power Connector: 1 x 8 pin

Recommended PSU: 500W

Dimensions: 242 x 130 x 53 mm

DirectX Support: DirectX 12

OpenGL Support: 4.6

G SYNC Support: Yes

HDCP Support: 2.2

VR Ready: Yes
